LED for Durst
In addition to the light source, please select one or more control units.
Version for Durst M605
Price: €1259
A module consisting of 400 LEDs and an upstream diffuser disc ensures an evenly illuminated area of 6x6cm. The LED cold light source completely replaces the halogen lighting head and can be installed by the user.
Version for Durst M670
Price: €1259
A module consisting of 400 LEDs and a diffuser disc ensures an evenly illuminated area of 6x7cm. The LED cold light source completely replaces the halogen lighting head and can be installed by the user.
Version for Durst Modular 70
Price: €1259
A module consisting of 400 LEDs and an upstream diffuser disc ensures an evenly illuminated area of 6x7cm. The LED cold light source can be installed by the user and completely replaces the halogen lighting head.
Version for Durst M805 diffus
Price: €1259
A module consisting of 400 LEDs with an upstream diffuser disc ensures an evenly illuminated area of 6x9cm.
The LED cold light source can be installed by the user and completely replaces the halogen lighting head. A weight counterbalance is included.
Version for Durst M805 Condenser
Price: €1259
A module consisting of 400 LEDs with an upstream diffuser disc ensures an evenly illuminated area of 6x9cm.
The adapter can be installed by the user.
After order confirmation, please send the original Durst condenser guide rails to Heiland Vision.
Version for Durst 1000 and 1200 condenser
Price: €1699
Over 800 LEDs and an upstream diffuser disc ensure an evenly illuminated area of 4×5 inches. We offer 2 variants:
1. Older Durst devices: The LED light source replaces the condensers. The light characteristic is diffuse. Installation is carried out by the customer.
2. New Durst devices with an elongated design as shown in the illustration.
The LED light source is used instead of the mirror box; the condensers remain in place. The light characteristic is a mixture of diffuse and directional. For installation, the light source housing must be sent to Heiland Vision.
Version for Durst Laborator 1200
Base price: €1699
Replacement for Coldiap and device head: €556
The cold light source replaces both the mixing box in Color and Multigrade devices and the Femobox in devices with opal lamps. Over 800 LEDs ensure an evenly illuminated area of 4×5 inches. We supply the light source in a housing that replaces the original Durst box and can be installed by the customer in a matter of seconds.
For rooms with low ceilings, we offer an optional attachment that completely replaces the Durst Colidap with device head. The device head is then approx. 20 cm lower, allowing larger images to be produced.
To ensure balance with multigrade and color devices, a weight compensator is included in the scope of delivery. Here, too, installation is carried out by the customer and takes approx. 30 minutes.
Product data sheet
Version for Durst Pictograph enlarger
Base price: €1699
Over 800 LEDs and an upstream diffuser disc ensure an evenly illuminated area of 4×5 inches. Please send the original Durst mixing box to Heiland electronic. The LED cold light source is integrated into this mixing box.
Version for Durst 138 Diff. up to 5x7 inches
Base price: €2599

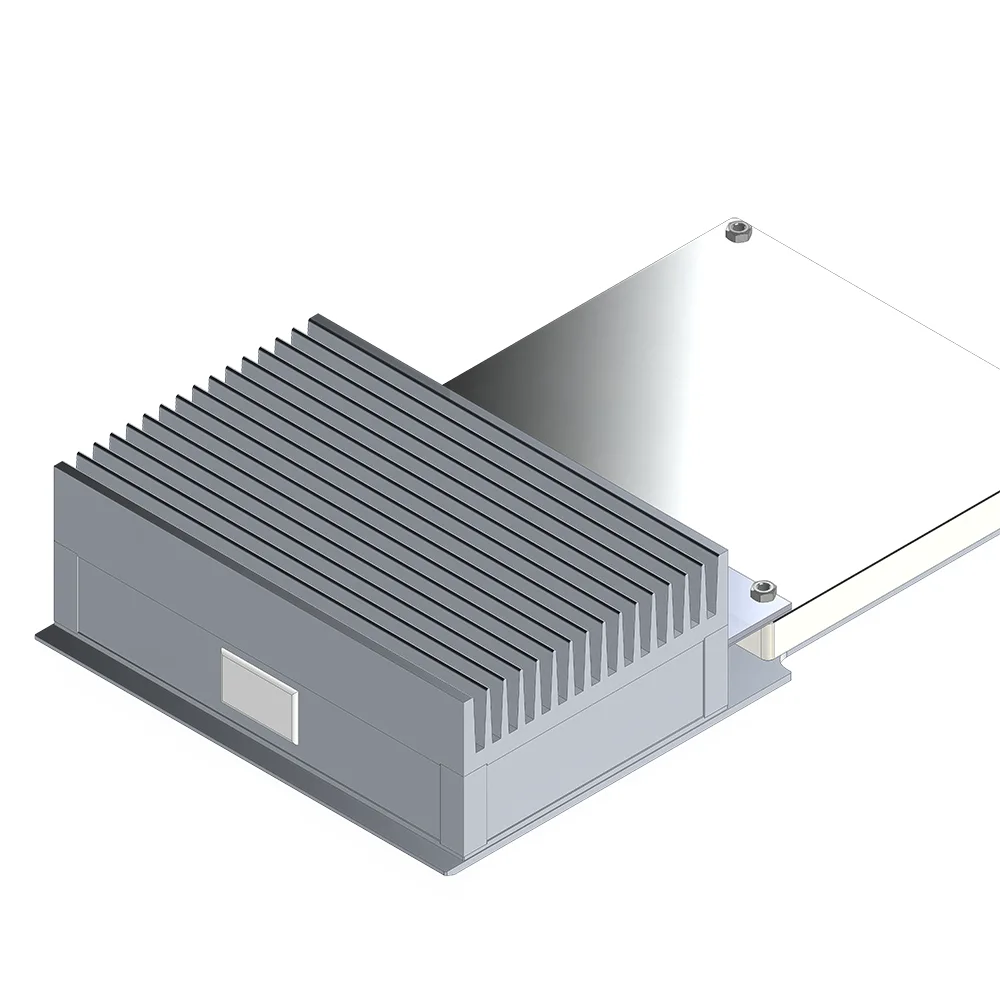

The cold light source with more than 1600 LEDs replaces the Durst halogen lamp head and is equipped with mounting rails to accommodate the original Durst mixing box. The adapter can be installed by the user. A weight counterbalance is included.
Version for Durst 138 condenser up to 4x5 inch
Base price: €1699
Over 800 LEDs and an upstream diffuser disc ensure an evenly illuminated area of 4×5 inches. The adapter is installed by the user in place of the mirror box.
Version for Durst 138 condenser up to 5x7 inches
Base price: €2599
Over 1600 LEDs and an upstream diffuser disc ensure an evenly illuminated area of 5×7 inches. The adapter is installed by the user in place of the mirror box.
Version for Durst 184 8x10 inches
Base price: €4089
Over 3200 LEDs and an upstream diffuser disc ensure an evenly illuminated area of 8×10 inches. The adapter is installed by the user in place of the mixing box.
Control units
Since the LED cold light source works with the three primary colors red, green, and blue, it is possible to use the light source for processing either black-and-white paper or color paper. We offer different control units for this purpose.
Please select your preferred control unit when ordering the light source. If you use multiple processes or working techniques, you can also order multiple control units for one LED light source.
Control unit for color processes
Price: €339
With this control unit, you can use the LED cold light source to digitize negatives and slides or to expose RA4 color papers such as Fuji Crystal Archive and Kodak Endura.
Filtering can be either additive (red, green, and blue) or subtractive (yellow, magenta, cyan).
The light color can be adjusted reproducibly using rotary knobs with detents. The color intensity is displayed in filter values from 0 to 400 on a yellow LCD. White light for focusing is activated at the touch of a button.
The intensity of the exposure can be varied within a range of 2 f-stops.
A sophisticated, stabilized 24V power supply prevents fluctuations in LED intensity when the mains voltage changes.
Time control is via an optional timer or an optional color analyzer. We supply the appropriate plug adapter.
Control unit for BW processes with timer
Price: €339
Time control with timer or analyzer for black-and-white processes
If you already have a timer, it can be used to control the LED cold light source.
The control supports 3 operating modes:
- White light for focusing
- Multigrade for exposure in the gradation range 00 to 5
- Red light for adjusting or placing dodging movements
The intensity of the light source can be dimmed in the range from 0 to -4 f-stops.
All values are displayed on a large red LCD display and can be set reproducibly using rotary knobs with detents.
A complex stabilized 24V power supply prevents intensity fluctuations of the LEDs when the mains voltage changes.
Fixed gradation paper can be exposed in white light mode.
Control unit for BW processes with splitgrade
Price: €1118 (LED not included)
The world’s most convenient exposure system!
The combination of both products, SPLITGRADE + LED cold light source, offers a unique range of possibilities for enlarging.
Not only do you get a pre-calibrated and measuring system for a wide range of multigrade papers, but you can also expose fixed-grade paper. The entire work process is also extremely convenient; for example, white light for focusing is activated with just one push of a button on the Splitgrade. The exposure time and gradation are then determined in a matter of seconds.
You also have the option of choosing whether you want to work with mixed light (as with a traditional multigrade head) or with split exposure, which is favored by a large number of well-known photographers.
Furthermore, you can switch on the red light separately for positioning paper or dodging tools and start the exposure directly from the red light using the foot switch.
In addition, a shutter function is automatically included, as the LEDs switch on and off within 1/100 s.
And you can dim the exposure intensity in the range of 2 f-stops according to the enlargement scale. This provides the same functionality as a neutral density filter.
Creative enlargement is encouraged with Splitgrade and the LED cold light source – not restricted, as is sometimes claimed. The user can also select or change the exposures manually, i.e., without a light sensor.
